The flexible extension for Gigaset N870 Multicell solutions in special environments

The Gigaset N870 Multicell system is exactly what you are looking for if you attach importance to secure DECT communication: It adapts perfectly to your needs, and is just as suitable for small businesses as it is for large organisations. Seamless roaming and handover of calls are no problem for this communication network.

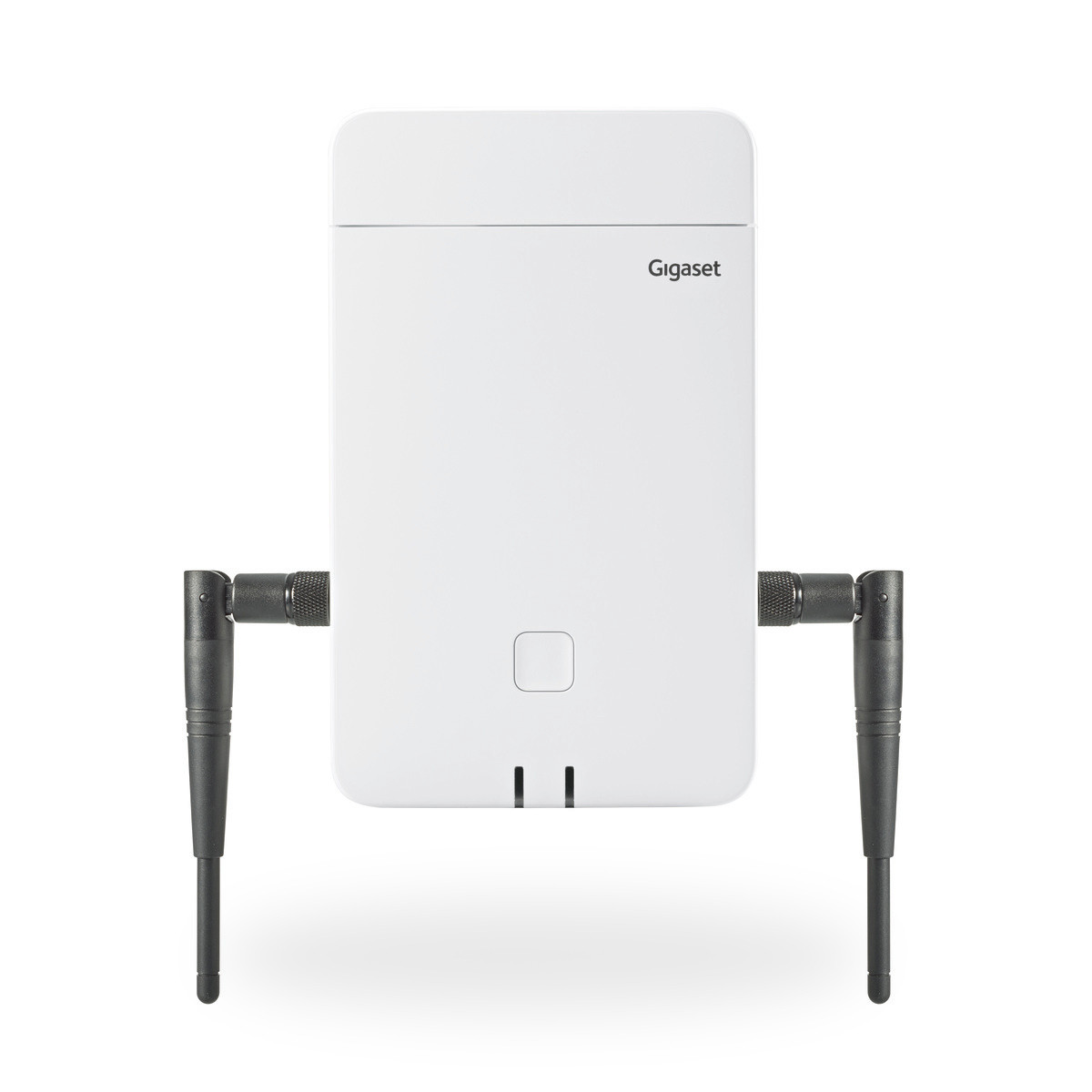

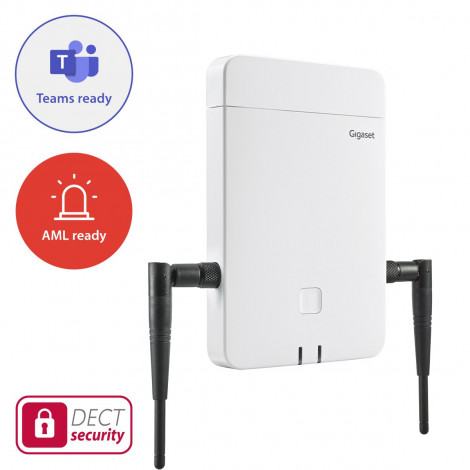

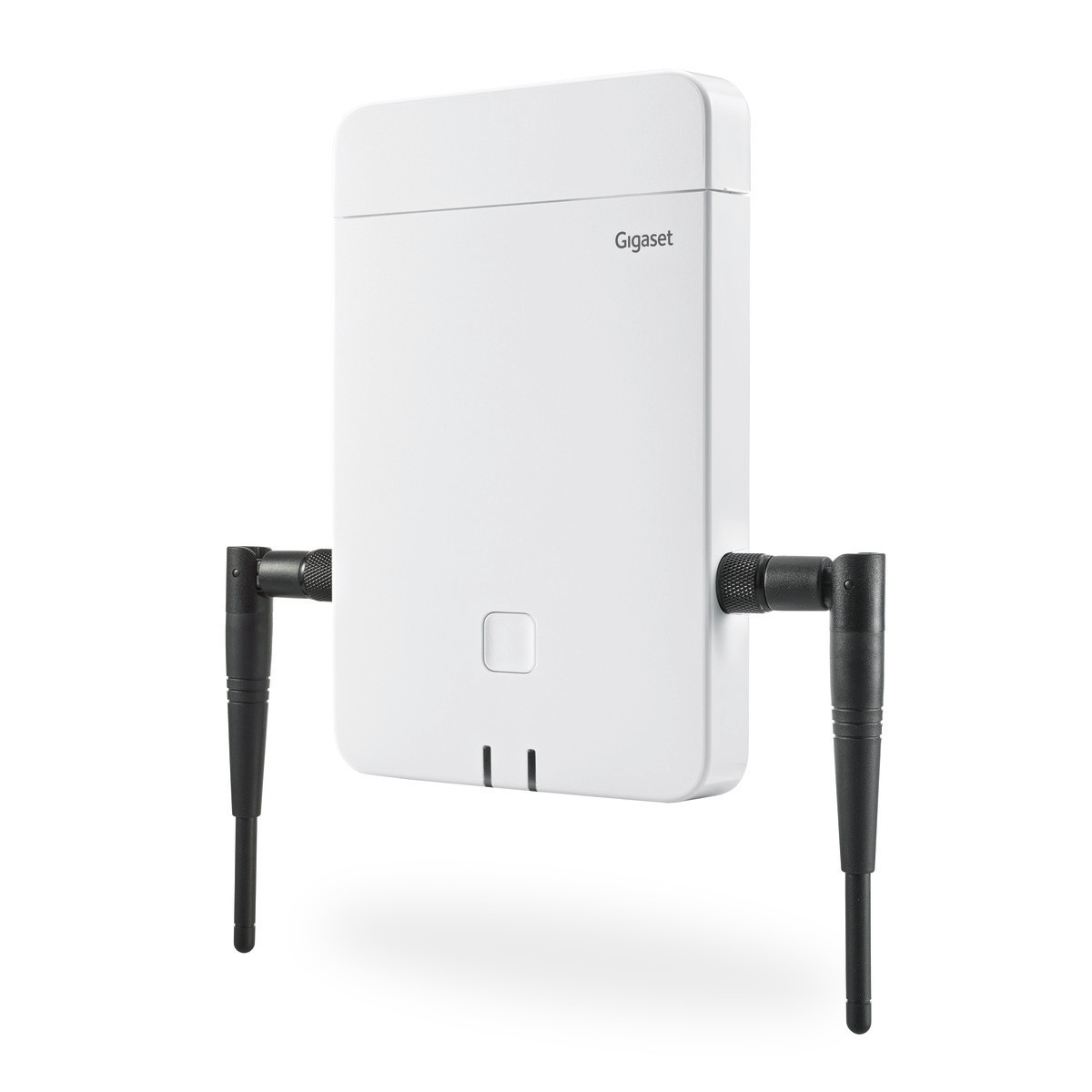

We are now able to offer you an extension with the same functionality, that uses the much-proven DECT technology of the Gigaset N870 Multicell. The N870E IP PRO however has two external antennas, that can be adjusted and removed. Antennas from third parties can also be used. This way your Multicell can be aligned and adapted even more flexibly – also in outdoor areas, production buildings and car parks.

Find a partner

Gigaset Professional is distributed exclusively via qualified business partners.

Our partners are IT and telecommunications distributors and value added resellers (VAR’s) as well as business systems providers. Our partners advise, sell, install and offer additional services regarding Gigaset Professional.

Find a partner

Description

It is all about the mix

Want to be contactable any time, anywhere in your company? No problem with the N870E IP PRO Multicell system: It lends itself perfectly to mixed operation with the standard N870 IP PRO Multicells from Gigaset. Whilst the N870 IP PRO has a proven track record mainly in indoor areas, you can use the N870E IP PRO for cordless calls outside, even in production buildings, corridors and stairwells. You are also contactable in car parks.

All antennas set to Receive

Don’t want to lose a connection ever again? Then the N870E IP PRO is the perfect Multicell solution for you: It has two TNC connectors, that are also suitable for third party antennas. The device itself can be stowed inside a cabinet, and thereby be protected from vandalism. The antennas are connected using cables and can be adjusted individually. Designer antennas mounted to the ceiling can also be used.

No outdoor accessories necessary

You value Multicell systems but are not keen on the high installation overhead? Then the N870E IP PRO is a good choice: It is simple to set up and the accessories are limited to external antennas and cables. Even when it is used in freezer or cold storage areas, no housing with heater is required – because the device can be positioned outside the room. Its characteristics are identical in outside areas, so there is need for expensive outdoor housings.

Everything compatible and ready-for-use immediately

Have a phone system that you want to continue to use? And so you shall, because the Gigaset N870E IP PRO is compatible with many virtual and IP-based phone systems from reputable vendors. Setup is straightforward, and roaming and handover of calls work perfectly. Refer to our Wiki page for an up-to-date list of compatibility with platforms, providers and handsets.

All set for today and tomorrow

Starting off small but wanting the system to expand as your company grows? The N870E IP PRO Multicell from Gigaset supports up to 250 DECT handsets. This number can be expanded by many more: The N870 Virtual Integrator software license enables up to 20,000 handsets to be supported – at one or multiple locations. So opt for a Multicell system that is fine-tuned perfectly to you: Today and in the future!

And is also popular with administrators

Attach importance to smooth DECT connections, first class sound quality and also value the “Made in Germany” seal of quality? These are just some of the benefits of the N870E IP PRO Multicell solution from Gigaset. And thanks to Zero-Touch Provisioning, it is also easy to set up for your administrators: The web-based user interface has an intuitive design, enabling configurations to be very quick and easy.

Gigaset AML: Alarm, Messaging and Location

The N870E IP PRO DECT system can be connected to Messaging and Alarm servers over an open interface (MQTT) and thereby offers intelligent message management with priority-dependent signalling. Learn more about the Gigaset AML here.

Microsoft Teams integration

The Gigaset N870E IP PRO is fully compatible with Microsoft Teams. This means that the call functionality via Teams can be used on the connected Gigaset Professional handsets. The N870E IP PRO DECT system is automatically configured via auto-provisioning. With the Teams integration in its IP DECT systems, Gigaset supports the technological change in the professional environment. For more information on combining landline telephony with Unified Communications, click here. A list of all approved Gigaset solutions for Microsoft teams can be found here.

Technical details

Specifications

General settings

Article name

Gigaset N870E IP PRO

Products

IP DECT multicell system

Yes

System features

Max. number of base stations

6000

Max. number of handsets

20000

Max. number of parallel calls

6000

Device features

Cordless standards

DECT | DECT-GAP

Max. number of base stations

Max. number of handsets

250

Max. number of parallel calls

Max. number of parallel calls per base

Housing

External antennas

LAN Port with Power-over-Ethernet

Yes

Power connector

Yes

Power supply (available as accessory)

Yes

Phonebook / Dialling

Max. number of external LDAP(S) phonebooks

Search function and reverse lookup

Yes

vCard support

Yes

blacklist

Yes

CLIP/CNIP

Yes

SIP MWI

Yes

Special features

uaCSTA

Yes

xHTML applications

Yes

IPUI Provisioning

Yes

Sync over LAN

Yes

Sync over DECT

Yes

Codecs

G.711 | G.722 | G.729ab

Quality of Service

Yes

Platform features

Call Transfer: Attended, unattended, semi-attended, blind

Yes

Call Waiting

Yes

Call Forwarding

Yes

Group Pick-up

Yes

CLIR

Yes

Service features

Syslog

Yes

Virtualisation Tool

Yes

Command Line Interface

Yes

Save and Restore

Yes

Security features

Transport Layer Security (TLS)

Yes

Secure Real Time Transport Protocol (SRTP)

Yes

SIP

Yes

SIPS

Yes

HTTP

Yes

HTTPS

Yes

Dimensions / Specs

Main Device, L x W x H in mm

227*188*42

Weight in g

300
